SiSoftware Sandra 2003
Although a synthetic benchmark, it's a popular one, freely available if you wish to make comparison benchmarks. We will be testing the CPU, MMX, and memory speeds.

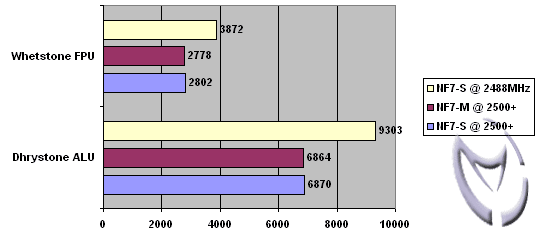

CPU Arithmetic Benchmark

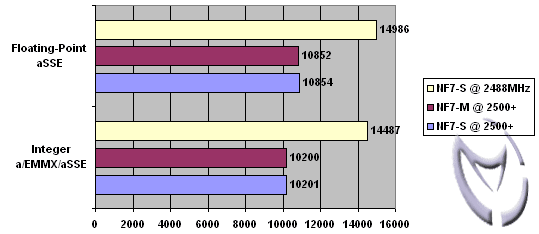

CPU Multimedia Benchmark
Both the NF7-M and NF7-S perform very closely with each other. The NF7-S does hold a slight lead, perhaps suggesting optimizations with the v2.0 PCB, but not enough for us to flat out state this as fact. Overclocked scores are truly impressive, and keep in mind we were unable to get anything near this with the v1.2 PCB.

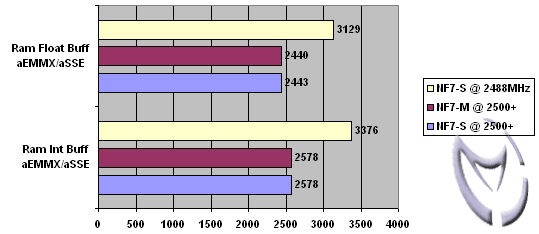

Memory Benchmark
Pretty much a dead heat here. We did get some impressive memory scores though, with our TWINX running synchronous at 2-3-3-7.

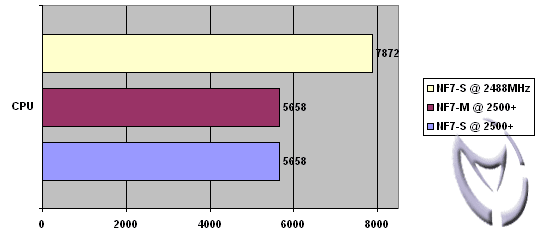

PC Mark 2002
No change from v1.2 to v2.0.
PiFast
A good indicator of CPU/Motherboard performance is version 4.2, by Xavier Gourdon. We used a computation of 10000000 digits of Pi, Chudnovsky method, 1024 K FFT, and no disk memory.
Lower is Better
This is a real-world benchmark, and will stress the memory subsystem. No great change between the PCB revisions, though overclocked speeds scored our best PiFast results thus far.
