MSI nBox N5900 Ultra-VTD256: We take a look at MSI's flagship FX card. Dubbed the nBox, it packs in the goodies, and is backed up by the killer FX5900 GPU.

Date: October 8, 2003
Manufacturer:
Written By:
Price:


Software

  • WinDVD Creator - This program allows for capture and editing of your videos to DVD compliant formats.  The choices between timeline and storyboard for editing was nice, as I prefer a timeline view.  A good starter program for those who have not done video editing previously, and much better than many other basic editors out there.
  • Command & Conquer Generals Edition - I wasn't too sure about this game when I got it, but I must admit that this game is addicting.  The design of the game makes all three groups equal in design but also vastly different in strategy.  Overall a good game and a good choice to be put into the package as it is demanding on the video card too.
  • Battlefield 1942 - This game recreates feel of WW2, and according to the reviews on it the game is incredible.  The 3D engine creates a very real look to the game which is always something that is needed.  The multiplayer aspect of this game is supposedly very good, as at least a few of our forum members are in a Battlefield 1942 clan.
  • Unreal II - Its a pure single player game, as UT 2003 is the multiplayer version of this game.  The quality of the displayed images is very good as one would expect from the Unreal engine that its based on.  The game itself was fairly nice, but is nothing that new in design of the game.
  • MSI Multimedia Beyond 3D - This is a collection of MSI utilities and the drivers for the video card, including the video capture drivers.  Apart from the standard DirectX, Adobe Acrobat, and PC Cillin, there is the MSI utilities of which the overclocking utility never worked for me.

   I must say that the included software is a very nice addition as its worth over $70 for all the programs.  What though about the software that you will be using everyday with this card, the drivers, how do they look?

Drivers

    We all know that drivers can help improve the performance of a video card, but can also cause more problems then they should.  The ease of use of the drivers can also help improve the experience for the user.  Lets look at the drivers that we used (45.23) with the video card.

Opening Menu

Overclocking Menu

Overlay Menu

Temperature Menu

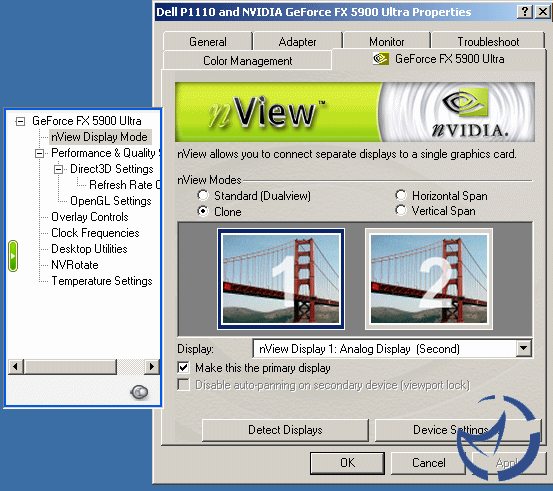

nView Menu

    Starting from the opening screen we are presented with the standard left side menu, which leads to all the options that we need.  The opening screen gives you the AGP speed DirectX version and also the driver versions.  Next we look at the overclocking menu that is unlocked using the Coolbits registry file, and has two options, 2D and 3D overclocking.  Of course all your overclocking efforts will be with the 3D option, and as we have mentioned previously, the auto detect option gets you very close to the best overclock for your video card.  Next is the Overlay menu, best used when there are at least two display devices attached to the video card.  With this menu you can choose to send the screen overlay to a TV, while having it on a small window on your main monitor or some other combination therein.  Next is one of my personal favorite menus, that of the temperature monitor.  As the FX5900 Ultra GPU is a very hot one, and there are two different clock speeds this makes sense.  Lastly is the nView menu which, assuming you have more than one monitor/TV hooked up allows you to change the options for the monitor from clone to spanning.  Overall if you have had a nVidia card in the past few years the drivers will not be anything foreign to you, except for the overclocking and temperature menus.

2D Quality/Overclocking

   2D quality is always something that is very important.  You look at your monitor every time you use the computer, and providing yourself with a good quality image is vital.  If you have a low quality display then after using the computer for a while you will run into many problems with your eyes.  So how does the quality of the image displayed by the MSI FX 5900 Ultra compare to some of the video cards we have reviewed previously?

    Well the tests are to be done on Dell rebranded 21" Trinitron monitor, running at 1600*1200@85Hz.  The tests consisted of our standard test image and pages of text, both black text on a white background and also white text on a black background.  Cards with dual display properties were both tested, with the reference card being the ATi AiW Radeon 9000 Pro.

  G400 Parhelia (H1) Parhelia (H2) MSI GF4MX (H1) MSI GF4MX (H2) MSI GF4 (H1) MSI GF4 (H2) Radeon 8500LE MSI FX5900U (H1) MSI FX5900U (H2) AiW 9000 Pro
Black Text: 5 7.5 7.5 5 5 4 3 4.5 6 6 7
White Text: 5 8 8 6 6 3 1 3.5 7 7 7.5
Bitmap Test: 5 9 9 4.5 5 4 4 5 7.5 7 7
Overall Rating: 5 8.25 8.25 5.25 5.5 3.75 3 4.25 6.75 6.5 7.25

    The quality of the 2D is the best I've seen from any nVidia based chipset, which deserves some praise both to MSI and nVidia for this.  Overall the quality of the 5900 Ultra was very good, with the text being a little too thin compared to the more readable Parhelia.  With images the only complaint about it is that the colors were washed out and the picture as a whole was overly bright.  But anyone who picks up this card will for the most part be very happy with the 2D quality of the card, though if you want the best Matrox wins and ATi also produces some good quality 2D.

    Now that we looked at 2D quality of the video card, what about the overclocking potential of this card.  Of course the results that you see here are not a representation of the overclock of each card, but is only an example of how far it is possible to overclock this card.  So how did this already highly clocked video card do?  Lets look at the results.

    500/950MHz is nothing to sneeze at, as both clocks are increased by 50MHz (100DDR for the memory), which translates into a 11% increase in both the GPU and the memory speed.  How this affects the benchmark results will be seen, but the bandwidth numbers should give an indication of the possible power of this chip, over 30GBps when overclocked.
