These are some images that did not make their way into the review. Some are redundant, some are silly. Any or none may shed further light on the ATC-600.
Image 12
Image 15
Image 22
Image 23
Image 25
Image 28
Image 29
Image 31
Image 32
Image 34
Image 35
Image 36

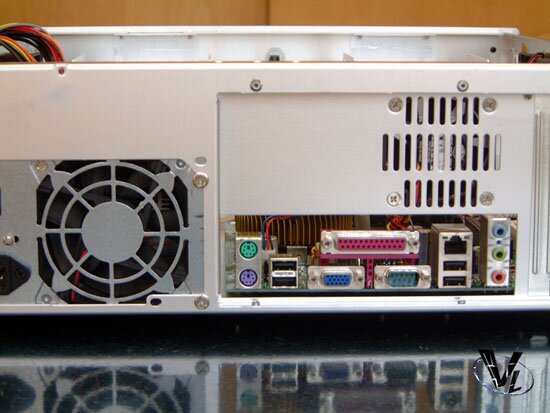

Image 38
Image 40
Image 44

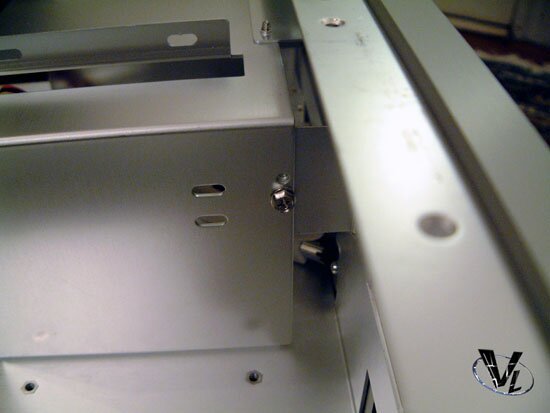

Image 45
Image 46
Image 51

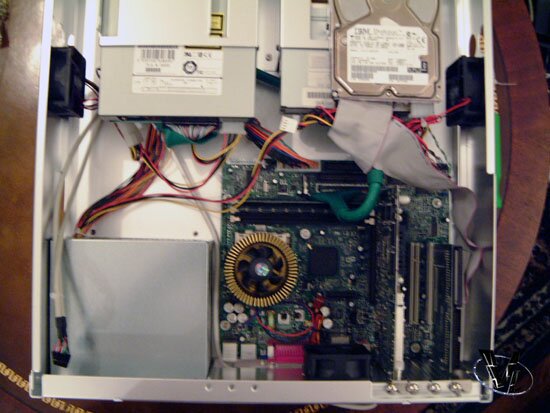

Image 54

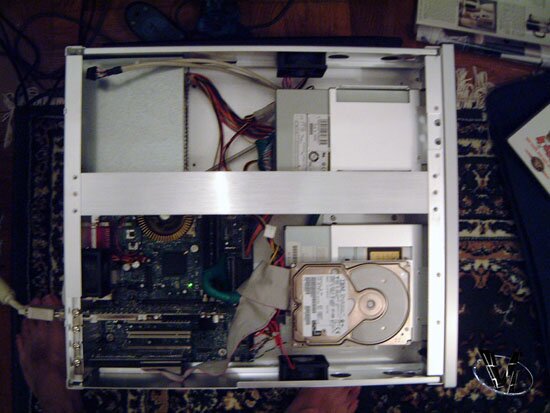

Image 56
|
Precis & Overview
Cooler Master shows us that they are on top of the game when their engineering division is able to take risks and release the ATC-600 series of computer cases.
The risks taken run the gamut: a desktop design in a world that prefers towers; an internal configuration that does not take the industry standard ATX form-factor, but opts instead for the OEM slice of the pie, the Micro-ATX form-factor; design that bucks the trends of the very demographic it appeals to, the desktop-power user (more on this in the article); and they risk alienating their customer base by providing a case that is so unique, it may not fill a proper niche.
This is not to say that Cooler Master has shot themselves in the foot, but rather that they are secure in their position at the apex of case-design and that risks, such as those enumerated above, are not enough to shelve a unique design. It is refreshing to see a company can push their product line out of the comfort zone, into a creative area.
Given the successes of every model they have released to this point, and adding momentum to a trend largely started by the PC-modder scene, it is high-time that a unique case make its debut. The Cooler Master ATC-600 series is a site for sore (jaded) eyes.
Specifications
| Case Specifications |
| Dimensions: |
476 mm(L) x 426 mm(W) x 145 mm(H)
or 18.7 in. x 16.8 in. x 5.7 in. |
| Weight: |
5kg or 11 lbs. Dry |
| Material: |
All Aluminum & Acrylic |
| Drive Bay: |
5.25" x 2 (Exposed)
3.5" x 2 (Shadow) |
| Slot Bracket: |
4 |
| Motherboard Type: |
Micro-ATX Motherboard |
| I/O Bracket: |
Standard ATX |
| Power Supply: |
Optional power supply unit 300W, 400W |
| Cooling: |
One 60 x 60 x 15 mm fan attached right side panel (intake)
One 60 x 60 x 15 mm fan attached left side panel (intake)
One 60 x 60 x 15 mm fan attached back panel (exhaust) |
| USB port: |
Dual USB ports and IEEE 1394 port |
|
