Arctic Cooling Freezer 13

thumbNot everyone can afford or even wants a giant heatsink with incredible overclocking prowess. The Arctic Cooling Freezer 13 is a simple, compact cooler that’s easy on the wallet and installation.

Manufacturer:
Price:

Everybody loves to read reviews on high cost, top of the range, PC components so it’s often easy to forget that most people who read those reviews can’t actually afford those items all the time or is even willing to spend that amount of money. In fact, many of us are on a budget, either self imposed or simply because of lack of funds. That doesn’t mean that we don’t require certain items for our PC’s. And just because we are not spending top dollar for a component, doesn’t mean we have to settle for below par items.

One of the more common items you’ll likely want to buy for your PC is an uprated heatsink to replace the standard cooler you get with a CPU. The past three reviews on heatsinks we’ve done here have been high cost monsters. Don’t get me wrong, they’ve been great, but they don’t exactly cater to the lesser budget.

The does though. It’s a tower style cooler, using the now almost obligatory heat-pipe set up, and a fan to cool the fins. So does it’s cheap price mean it’s not up to much or is it a bit of a bargain? Let’s find out.



Specifications

Specifications
Powered by Radeon® HD 2600 PRO GPU – 650MHz(Turbo)
Superscalar unified shader architecture
120 stream processing units
512MB/256MB 128-bit DDR2 – 1050MHz(Turbo)
Comprehensive DirectX® 10 support
Built-in HDMI and 5.1 surround audio
Dynamic geometry acceleration
Game physics processing capability



box_box1 box_box2

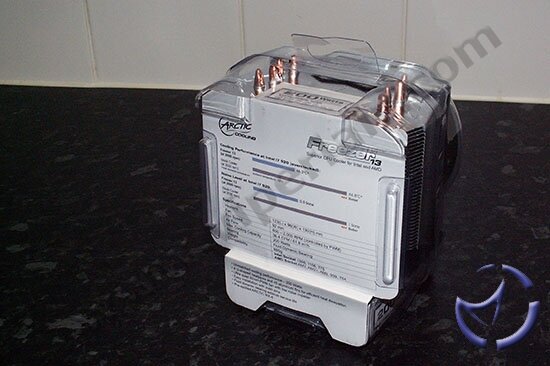

The box for the Arctic Cooling Freezer 13 is tight fitting little number that’s shaped to near enough the contours of the heatsink itself. It’s completely clear, so you get a very good look at what you’re buying. Turning the package around we can see on the rear all the pertinent information you might require.

box_clip1 box_contents1 hsf_mount1



Opening the box is a very simple affair; there are three clips on the sides and bottom that hold the two halves of the package together. Inside, you find the heatsink itself, a small instruction manual and the mounting components.

hsf_hsf1 hsf_fan1



The Arctic Cooling Freezer 13 sports a 92mm fan in white, with a black surround that can pop off the front to aid in cleaning.

hsf_back1

Turning the heatsink around we can see numerous fins that provide the aluminium surface area for cooling the four heat-pipes.

hsf_pipes1

Speaking of which, the pipes themselves are staggered within the fins to help in making sure each pipe receives some of the air flow from the fan. The pipes go right down into the base, as close to the CPU as possible. The pipes, like the base, are made from copper.

hsf_base1

The base comes pre-applied with some of Arctic Cooling’s MX-4 paste. As you can see, in the picture, the base is covered by a clear plastic protective mould, which I foolishly removed and forgot to put back on. Yep, I covered my hands in the MX-4, and then put the base back on until I was ready to install.

hsf_top1

Moving to the top of the heatsink, we can clearly see the staggered formation of the pipes, and a sticker with the Freezer 13 logo on the black surround.

hsf_mount2

in_amd

AMD Above

in_intel

Intel Above

Installation is pretty simple, but in both AMD and Intel set ups, you will first be required to remove the fan. After that, you loosely screw the mounting lugs (which fit on the existing AMD socket), with the screws provided, on to the heatsink, put the heatsink and lugs in place and tighten the screws. For Intel, you attach the supplied mounting bracket using push pins, and then screw the heatsink on to the mounting bracket. Then you re-attach the fan. In both cases, if you’ve already installed the original heatsink that came with your CPU, you’ll easily be able to install the Arctic Cooling Freezer 13. The Intel installation can of course be orientated as you see fit, but the AMD installation, like many AMD heatsinks that use the existing mounting bracket and lugs will be at the mercy of the socket orientation on the motherboard itself.



Testing

Test Setup: Intel Core i5 750 @ 3.8GHz (1.4v), 4GB of Crucial Ballistix Tracer Ram @ 1600MHz, MSI P55-GD65, Silicon Power M10 32GB + Western Digital 640GB, Hiper Type M 730w PSU, Cooler Master Cosmos S Case (no side panel fan installed, all other fans at minimum).

Idle and Load temperatures were recorded over a three day period (for each cooler) at various intervals (5 records each) and then averaged. Readings were taken while room temperature was at 24C ambient. For Idle readings, the PC was booted into Windows 7 and left for 15 minutes to do nothing. Load readings where taken after an hour of Orthos CPU testing.

Watercooling results come from my own personal watercooling set up of a Kryos waterblock, triple rad with 3x 120mm fans and a passive cooling reservoir. The Noctua NH-D14 and Noctua NH-C12P SE14 results are from single default configurations; no U.L.N.A. Adapters were used for either cooler. In the case of the Noctua Coolers, the supplied thermal paste was used. The Arctic Cooling Freezer 13 used the pre-applied TIM it came with.
